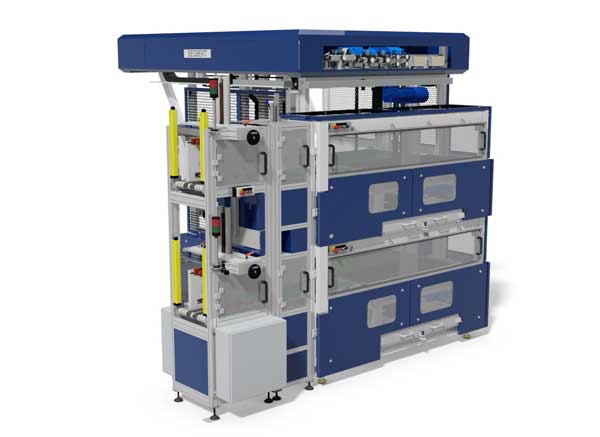

Layer palletizer

dzpa

For 2 different product streams on 2 levels

Twice as profitable: The highly efficient palletizer DZPA for the simultaneous palletizing of 2 of the same or different product streams was especially designed for web presses with trend setting wider webs and format sizes.

Applications:

  • DZPA 80: for pallet size 800 x 1200 mm
  • DZPA 100: for pallet sizes between 800 x 1200 and
    1000 x 1200 mm up to 40" x 48"
  • DZPA 1165: for pallet size 1165 x 1165 mm


  • Behind 2 individual web presses with up to 96 pages combined
  • Behind high speed web presses with 96 pages or more
  • Behind saddle stitchers
  • Behind 2 individual perfect binders

Options:

  • Slip sheet feeder: integrated in the layer palletizer for optimum stability of the full pallet or external gantry style system for use of stiff materials
  • Centering holder: automatic adjustment to various layer formats
  • Pallet terminal PTW: storage of up to 15 empty pallets

Brochure

ZPA/DZPA [315 KB]

Technical data

DZPA 80 [361 KB]
DZPA 100 [362 KB]
DZPA 1165 [363 KB]
